Status

The status module displays the status of other avionics subsystems.

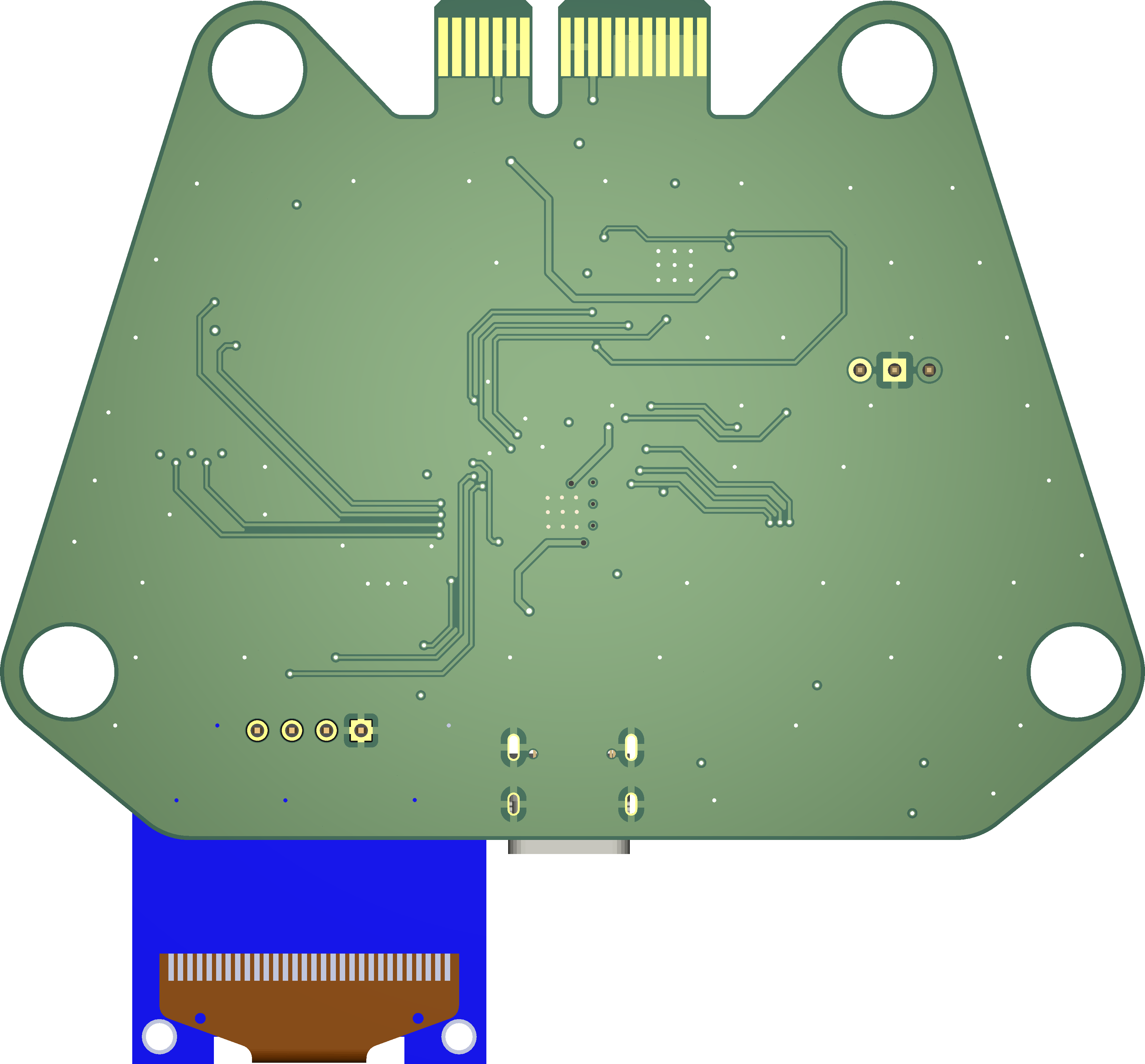

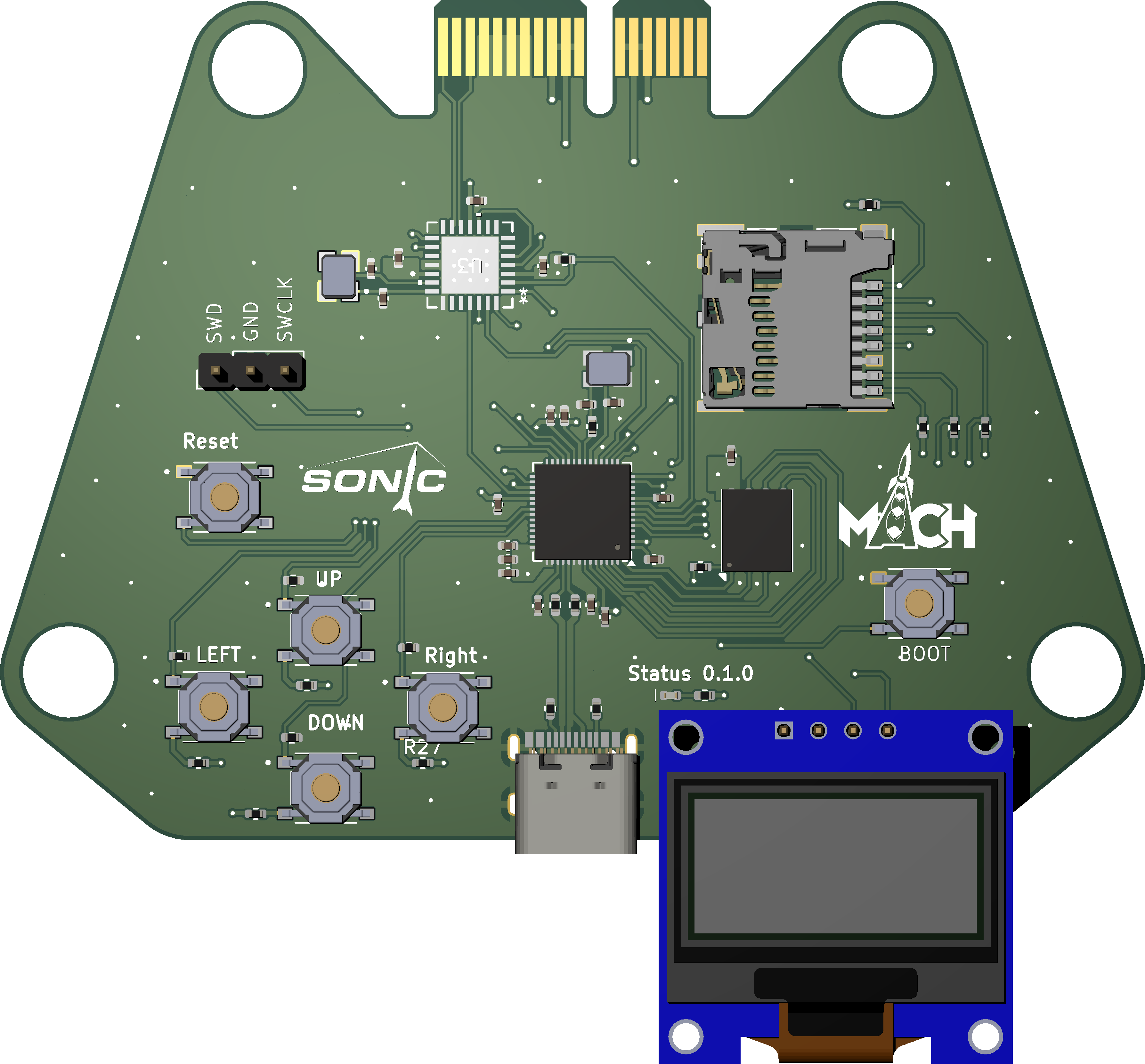

3D Render 3D Render

3D Render

alt text

Schematic

Front Back

Footprint

Action Items

Schematic

  • USB resistors
  • Add buttons
    • 4 LCD
    • 1 reset
    • 1 boot
  • Source SD card mount

Routing

  • Routing USB and CAN
    • Learn differential pairs
    • Learn about impedance matching
  • Digikey trace width calculator

Testing

  • Test out display module.

Components

MCP25625 CAN Controller

  • The CAN controller reads messages from different modules and transmits the received data to the RP2040 MCU.

RP2040 MCU

  • Receives CAN messages and displays them on an LCD screen.
  • Push buttons connected to the MCU will be used for resetting and booting the MCU.
  • Push buttons connected to the MCU will allow navigation through the CAN messages displayed on the LCD screen, enabling switching between different devices forward and backward.

Micro SD Card Slot

  • Capable of storing CAN data onto an SD card.
